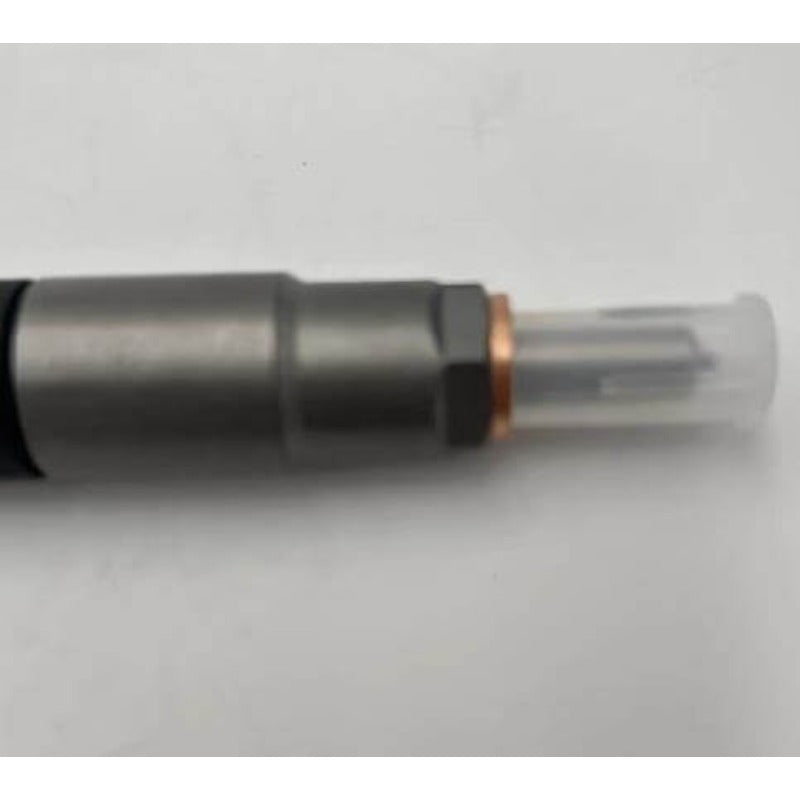

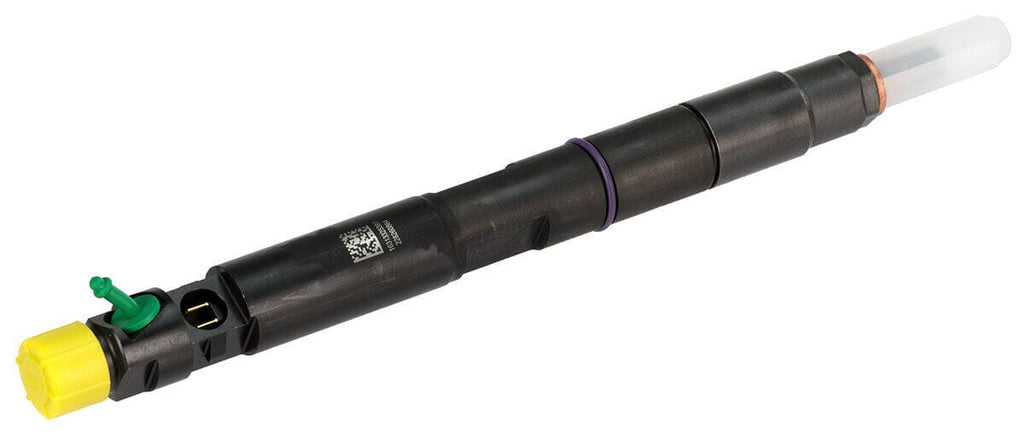

Common Rail Fuel Injector 320/06881 for JCB Skid Steer Loader 225 260 280 300 330

Common Rail Fuel Injector 320/06881 for JCB Skid Steer Loader 225 260 280 300 330

This fuel injector is engineered as a direct replacement for the JCB Skid Steer Loader 225 260 280 300 330. Manufactured to meet or exceed OEM specifications, it delivers reliable performance in demanding conditions. Each unit is tested for fuel flow, pressure rating, and durability before leaving the factory to ensure consistent quality across every order.

Vehicle Compatibility

Replaces OEM Part Numbers

06881 • 320-06881 • 32006881Delphi • 28317158 • Engine

Signs You Need a Replacement

If your equipment is showing any of these symptoms, the injectors & nozzle may be the cause:

• Rough idle or misfire — Uneven fuel delivery from a worn injector causes the engine to shake at idle. On engines, this is often accompanied by a knocking sound under load.
• Black or white exhaust smoke — Black smoke means excess fuel; white smoke indicates incomplete combustion. Both point to injector spray pattern degradation.
• Loss of engine power — A single failing injector reduces cylinder output. Multi-cylinder engines lose noticeable power when one injector flows less than the rest.
• Increased fuel consumption — Poor atomization means the engine burns more fuel to produce the same power. Monitor your fuel burn rate as an early warning sign.
• Hard starting or no start — If the injector doesn’t deliver fuel on cranking, the cylinder won’t fire. This is especially common in cold weather with worn nozzles.
• Fuel in engine oil (dilution) — Fuel leaking past the injector seat seal contaminates the crankcase oil. If the oil level rises or smells of diesel, inspect the injectors immediately.

Replace as a Set

Replace all injectors as a set whenever possible. On engines, mixing old and new injectors creates uneven fuel delivery — the new injectors compensate for the worn ones, shortening their life. When installing, use new copper sealing washers and torque to the specification in the service manual. After installation, run the engine at idle for 5 minutes to bleed air from the fuel system, then check for leaks at each injector connection before putting the machine under load.

Frequently Asked Questions

Will this fit my JCB 225?
Yes. This part is designed to fit the JCB 225, 260, 280, 300 among other models listed in the compatibility table above. Verify your specific model and engine code before ordering to ensure the correct fit.

Can I cross-reference 06881 with 320-06881?
Yes. Both 06881 and 320-06881 are interchangeable OEM numbers for this part. They refer to the same component with the same specifications, just different part number revisions.

What are the common failure signs on a JCB engine?
On JCB engines, watch for black exhaust smoke under load, rough idle, misfire codes (P0300 series), and loss of power. A single failing injector can reduce engine output by up to 25%. If you notice fuel in the engine oil, the injector seat seal is likely compromised.

What tools do I need to install this on a JCB?
Standard metric hand tools will handle most of the job – sockets, wrenches, and a torque wrench. For JCB equipment, check the specific service manual for any special tools or torque values.
