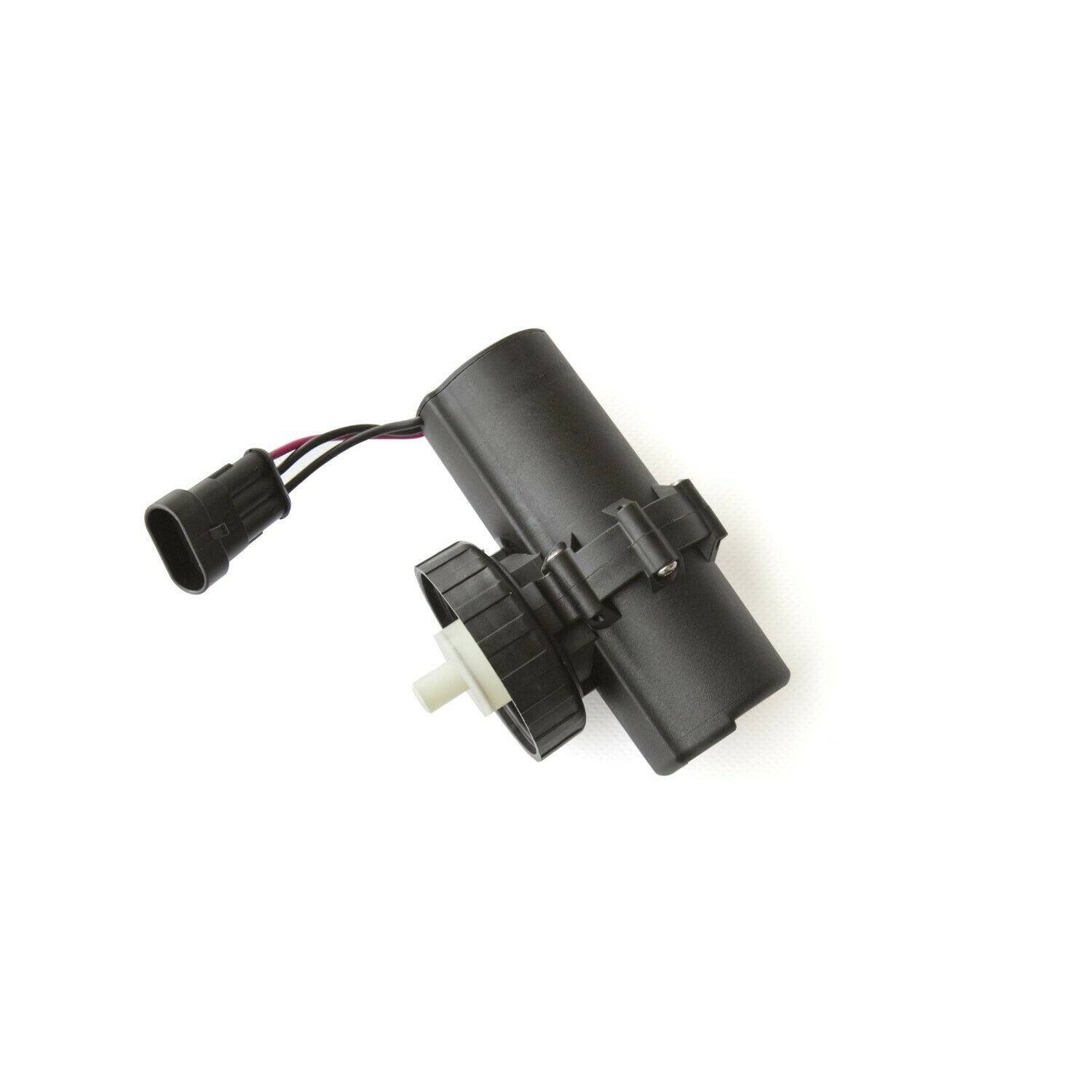

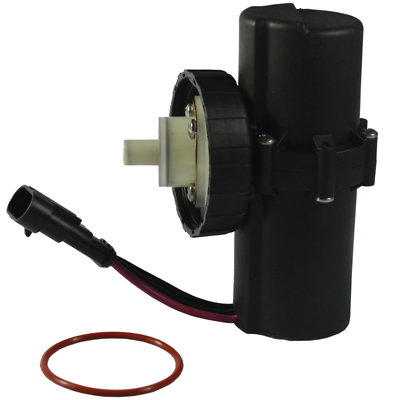

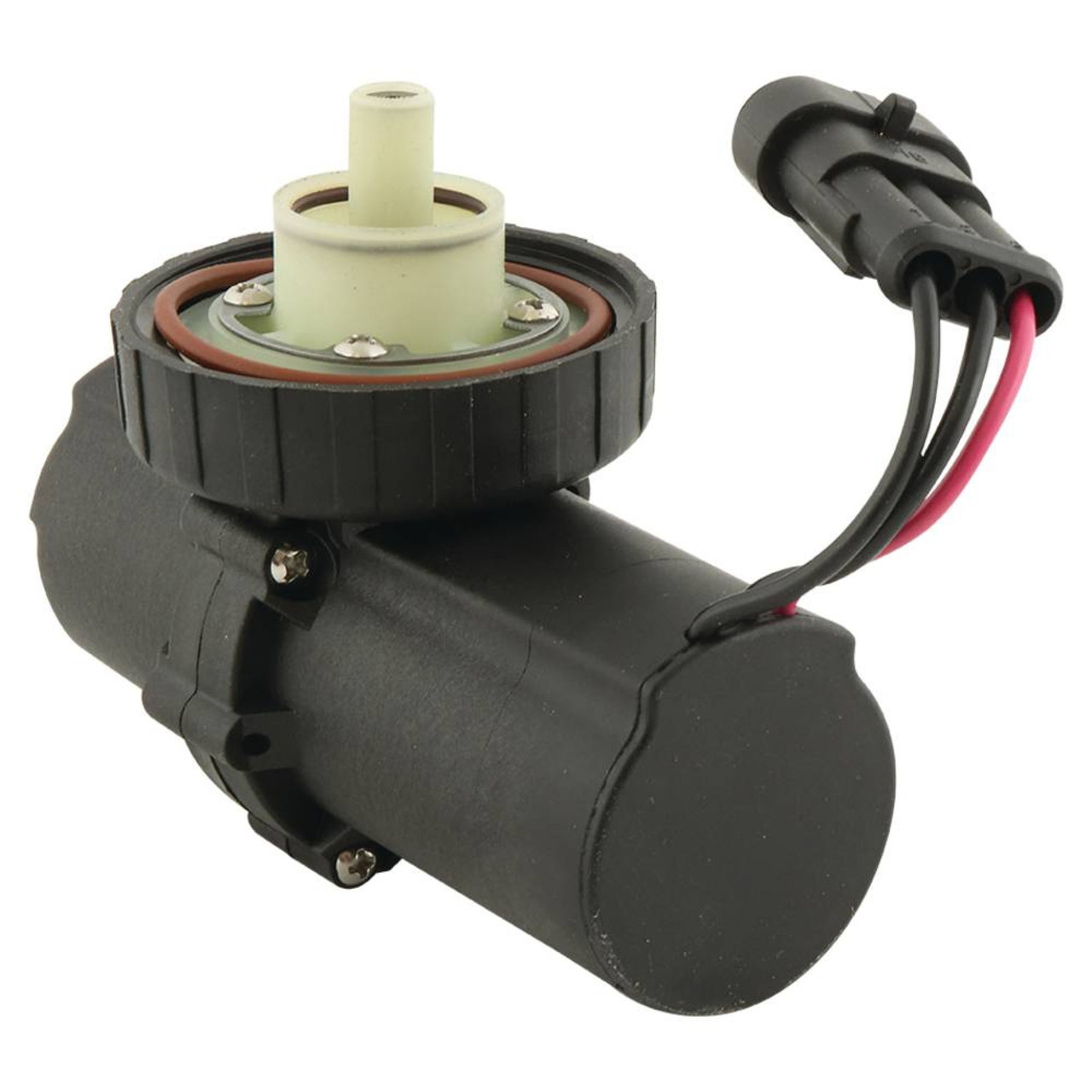

Electric Fuel Pump 87802238 for Ford New Holland 555E 575E 655E 675E 5610S 6610S 8010 82606 8560 LX865 LB95 TS90 TM155 TM175 TM190
This fuel pump is engineered as a direct replacement for the Ford New Holland 555E 575E 655E 675E 5610S 6610S 8010 82606 8560 LX865 LB95 TS90 TM155 TM175 TM190. Manufactured to meet or exceed OEM specifications, it delivers reliable performance in demanding conditions. Each unit is tested for fuel flow, pressure rating, and durability before leaving the factory to ensure consistent quality across every order.
Vehicle Compatibility
| Application | Details |
|---|---|
| New Holland 555E 575E 655E 675E 5610S 6610S 8010 82606 8560 LX865 LB95 TS90 TM155 TM175 TM190 Replace Part Number: 87802238, 87802055 Application:Fit for following models | See product specifications |
| New Holland Self | Propelled Bale Wagon: 1089, 1095 |
| New Holland Speedrower Self | Propelled Windrower: 2550 |
| New Holland Motor Grader: RG100, RG80 | See product specifications |
| New Holland Loader: 555E, 575E, 655E, 675E, L865, LB110, LB115, LB115.B, LB115CP, LB75.B, LB85, LB90, LB95, LS180, LS190, LX865, LX885, LX985, NH85TLB, NH75TLB, NH95TLB | See product specifications |
| New Holland Tractor: 5610S, 6610S, 675E, 6810S, 7010, 7610S, 8010, 8160, 8260, 8360, 8560, TB100, TB110, TB120, TB80, TB85, TB90, TM115, TM120, TM125, TM130, TM135, TM140, TM150, TM155, TM165, TM175, TM190, TS100, TS110, TS115, TS90, TV145Fiat | |
| Hitachi Backhoe Loader: FB100, FB110, FB90Fiat | Kobelco Backhoe Loader: FB100.2, FB110.2, FB200.2, FB90.2Fiat |
| Hitachi Kobelco Skid Steer Loader: SL65B | See product specifications |
Replaces OEM Part Numbers
87802238 • 87802055 • Application • following • models • Holland • Self-Propelled • Wagon • 1095Ford • Speedrower • Windrower • 2550Ford
Signs You Need a Replacement
If your equipment is showing any of these symptoms, the fuel pump may be the cause:
- Engine cranks but won’t start — The pump may have lost prime or stopped delivering fuel. Check for fuel at the filter outlet before replacing the pump.
- Stalling under load — A weak pump can’t maintain pressure at high demand. The engine runs fine at idle but dies when you put it to work.
- Fuel pressure warning (if equipped) — Modern New Holland equipment monitors fuel rail pressure. A low-pressure warning often means the pump is failing.
- Loud whining from fuel system — A failing pump makes a high-pitched whine that gets louder as it warms up. Normal pump noise is a low hum.
- Air in fuel lines — If you see bubbles in the transparent fuel line or the primer bulb won’t stay firm, the pump may be drawing air through a worn seal.
- Excessive return flow — Too much fuel returning to the tank instead of reaching the injectors indicates internal pump wear.
Before You Replace the Pump
Before replacing the pump, check the fuel filter and fuel lines for restrictions. A blocked filter causes the same symptoms as a failing pump on New Holland equipment. When installing the new pump, fill it with clean fuel before connecting the lines — this reduces priming time and prevents dry-run damage. After installation, bleed the system fully and check for leaks at all connection points. Replace the fuel filter at the same time as the pump to protect the new unit from debris.
Frequently Asked Questions
Will this fit my New Holland 555E?
Yes. This part is designed to fit the New Holland 555E, 575E, 655E, 675E among other models listed in the compatibility table above. Verify your specific model and engine code before ordering to ensure the correct fit.
Can I cross-reference 87802238 with 87802055?
Yes. Both 87802238 and 87802055 are interchangeable OEM numbers for this part. They refer to the same component with the same specifications, just different part number revisions.
How do I check if my engine code (LX865, LB95, TS90, TM155) matches?
The engine code is stamped on a metal tag attached to the engine block, usually near the timing belt cover or on the cylinder head. Compare the code you find with the list above. Engine codes are 3 to 6 characters long.
How long does a New Holland fuel pump typically last?
Fuel pump life varies by application, but on New Holland equipment you can generally expect 5,000 to 10,000 hours of operation. Running the tank dry, using contaminated fuel, or neglecting the fuel filter are the top causes of premature failure.
