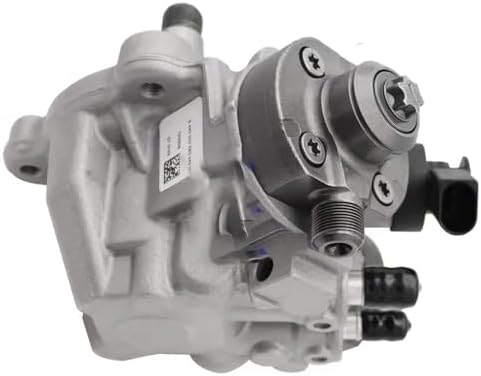

Fuel Injection Pump 340-5862 for Caterpillar CAT Engine C3.4 3044C Loader 297C 272C 299C

Fuel Injection Pump 340-5862 for Caterpillar CAT Engine C3.4 3044C Loader 297C 272C 299C

This fuel pump is engineered as a direct replacement for the Caterpillar CAT Engine C3.4 3044C Loader 297C 272C 299C. Manufactured to meet or exceed OEM specifications, it delivers reliable performance in demanding conditions. Each unit is tested for fuel flow, pressure rating, and durability before leaving the factory to ensure consistent quality across every order.

Vehicle Compatibility

Replaces OEM Part Numbers

CA3405862 • 340-5862 • 3405862 • F01G09W0EE • 104742-3070 • 104642-3070 • 32A65-47330 • 1047423070 • 1046423070 • 32A6547330 • Engine • Caterpillar

Signs You Need a Replacement

If your equipment is showing any of these symptoms, the injection pump may be the cause:

• Engine cranks but won’t start — The pump may have lost prime or stopped delivering fuel. Check for fuel at the filter outlet before replacing the pump.
• Stalling under load — A weak pump can’t maintain pressure at high demand. The engine runs fine at idle but dies when you put it to work.
• Fuel pressure warning (if equipped) — Modern Caterpillar equipment monitors fuel rail pressure. A low-pressure warning often means the pump is failing.
• Loud whining from fuel system — A failing pump makes a high-pitched whine that gets louder as it warms up. Normal pump noise is a low hum.
• Air in fuel lines — If you see bubbles in the transparent fuel line or the primer bulb won’t stay firm, the pump may be drawing air through a worn seal.
• Excessive return flow — Too much fuel returning to the tank instead of reaching the injectors indicates internal pump wear.

Before You Replace the Pump

Before replacing the pump, check the fuel filter and fuel lines for restrictions. A blocked filter causes the same symptoms as a failing pump on Caterpillar equipment. When installing the new pump, fill it with clean fuel before connecting the lines — this reduces priming time and prevents dry-run damage. After installation, bleed the system fully and check for leaks at all connection points. Replace the fuel filter at the same time as the pump to protect the new unit from debris.

Frequently Asked Questions

Will this fit my Caterpillar 3044C?
Yes. This part is designed to fit the Caterpillar 3044C, 297C, 272C, 299C among other models listed in the compatibility table above. Verify your specific model and engine code before ordering to ensure the correct fit.

Can I cross-reference CA3405862 with 340-5862?
Yes. Both CA3405862 and 340-5862 are interchangeable OEM numbers for this part. They refer to the same component with the same specifications, just different part number revisions.

My vehicle is a 4742 model – is it covered?
The compatibility range for this part includes 4742-3070. The 4742 model year falls within this range, but verify the engine code and body type match. Mid-year production changes sometimes mean two vehicles from the same model year use different parts.

How long does a Caterpillar fuel pump typically last?
Fuel pump life varies by application, but on Caterpillar equipment you can generally expect 5,000 to 10,000 hours of operation. Running the tank dry, using contaminated fuel, or neglecting the fuel filter are the top causes of premature failure.
