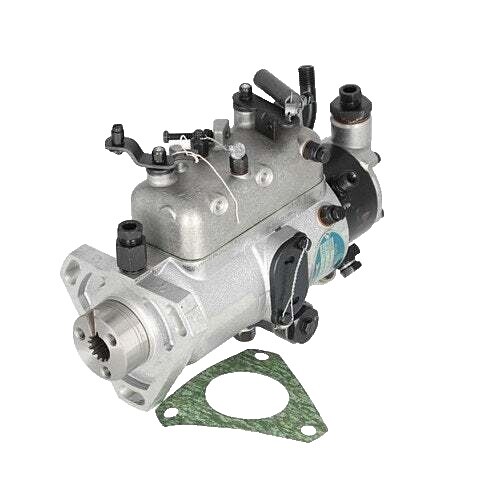

Fuel Injection Pump 7020869 6667996 for Bobcat Loader S160 S185 S205 S550 S570 S590 T180 T190 T550 T590
This fuel pump is engineered as a direct replacement for the Bobcat Loader S160 S185 S205 S550 S570 S590 T180 T190 T550 T590. Manufactured to meet or exceed OEM specifications, it delivers reliable performance in demanding conditions. Each unit is tested for fuel flow, pressure rating, and durability before leaving the factory to ensure consistent quality across every order.
Vehicle Compatibility
| Application | Details |
|---|---|
| Kubota Engine V1903 V2203 | See product specifications |
| Bobcat Loader 751 743 773 763 7753 S185 S150 S160 S175 Replacement Part Number: 7020869 Fit for | See product specifications |
| Kubota Engine: V1903, V1903 2EB | Tier II, V2203, V2203 2EB – Tier II Applications:Fit For |
| Bobcat Work Machine: 5600Fit For | See product specifications |
| Bobcat Excavator: 334, 341, 331, 337Fit For | See product specifications |
| Bobcat Loader: 645, 743, 751, 753, 763, 773, 1600, 7753, S150, S160, S175, S185 | See product specifications |
Replaces OEM Part Numbers
7020869 • Kubota • Engine • V1903 • V2203
Signs You Need a Replacement
If your equipment is showing any of these symptoms, the injection pump may be the cause:
- Engine cranks but won’t start — The pump may have lost prime or stopped delivering fuel. Check for fuel at the filter outlet before replacing the pump.
- Stalling under load — A weak pump can’t maintain pressure at high demand. The engine runs fine at idle but dies when you put it to work.
- Fuel pressure warning (if equipped) — Modern Bobcat equipment monitors fuel rail pressure. A low-pressure warning often means the pump is failing.
- Loud whining from fuel system — A failing pump makes a high-pitched whine that gets louder as it warms up. Normal pump noise is a low hum.
- Air in fuel lines — If you see bubbles in the transparent fuel line or the primer bulb won’t stay firm, the pump may be drawing air through a worn seal.
- Excessive return flow — Too much fuel returning to the tank instead of reaching the injectors indicates internal pump wear.
Before You Replace the Pump
Before replacing the pump, check the fuel filter and fuel lines for restrictions. A blocked filter causes the same symptoms as a failing pump on Bobcat equipment. When installing the new pump, fill it with clean fuel before connecting the lines — this reduces priming time and prevents dry-run damage. After installation, bleed the system fully and check for leaks at all connection points. Replace the fuel filter at the same time as the pump to protect the new unit from debris.
Frequently Asked Questions
Will this fit my Bobcat S160?
Yes. This part is designed to fit the Bobcat S160, S185, S205, S550 among other models listed in the compatibility table above. Verify your specific model and engine code before ordering to ensure the correct fit.
Can I cross-reference 7020869 with Kubota?
Yes. Both 7020869 and Kubota are interchangeable OEM numbers for this part. They refer to the same component with the same specifications, just different part number revisions.
How long does a Bobcat fuel pump typically last?
Fuel pump life varies by application, but on Bobcat equipment you can generally expect 5,000 to 10,000 hours of operation. Running the tank dry, using contaminated fuel, or neglecting the fuel filter are the top causes of premature failure.
What tools do I need to install this on a Bobcat?
Standard metric hand tools will handle most of the job – sockets, wrenches, and a torque wrench. For Bobcat equipment, check the specific service manual for any special tools or torque values.
