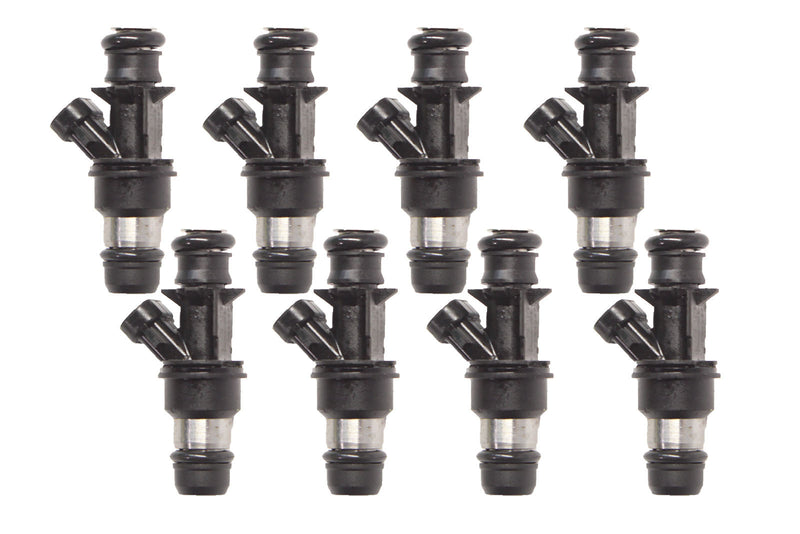

Fuel Injector 0432217092 0432217092 for Chevrolet GMC C1500 C2500 C3500 K1500 K2500 K3500 V3500 6.2L V8
This fuel injector is engineered as a direct replacement for the Chevrolet GMC C1500 C2500 C3500 K1500 K2500 K3500 V3500 6.2L V8. Manufactured to meet or exceed OEM specifications, it delivers reliable performance in demanding conditions. Each unit is tested for fuel flow, pressure rating, and durability before leaving the factory to ensure consistent quality across every order.
Vehicle Compatibility
| Application | Details |
|---|---|
| GMC C1500 1988 | 90 V8-6.2L |
| GMC C2500 1988 | 90 V8-6.2L |
| GMC C3500 1988 | 90 V8-6.2L |
| GMC G2500 1985 | 91 V8-6.2L |
| GMC G3500 1985 | 91 V8-6.2L |
| GMC JIMMY 1987 | 90 V8-6.2L |
| GMC K1500 1988 | 90 V8-6.2L |
| GMC K2500 1988 | 90 V8-6.2L |
| GMC K3500 1988 | 90 V8-6.2L |
| GMC P3500 1991 V8 | 6.2L |
| GMC R1500 1987 V8 | 6.2L |
| GMC R1500 SUBURBAN 1987 | 90 V8-6.2L |
Replaces OEM Part Numbers
0432217092 • 14063606 • 2910-01-280-4283 • 2910012804283 • 6703801 • Application • following • models • CHEVROLET • BLAZER • 1987-90 • V8-6.2LCHEVROLET
Signs You Need a Replacement
If your equipment is showing any of these symptoms, the injectors & nozzle may be the cause:
- Rough idle or misfire — Uneven fuel delivery from a worn injector causes the engine to shake at idle. On Chevrolet engines, this is often accompanied by a knocking sound under load.
- Black or white exhaust smoke — Black smoke means excess fuel; white smoke indicates incomplete combustion. Both point to injector spray pattern degradation.
- Loss of engine power — A single failing injector reduces cylinder output. Multi-cylinder engines lose noticeable power when one injector flows less than the rest.
- Increased fuel consumption — Poor atomization means the engine burns more fuel to produce the same power. Monitor your fuel burn rate as an early warning sign.
- Hard starting or no start — If the injector doesn’t deliver fuel on cranking, the cylinder won’t fire. This is especially common in cold weather with worn nozzles.
- Fuel in engine oil (dilution) — Fuel leaking past the injector seat seal contaminates the crankcase oil. If the oil level rises or smells of diesel, inspect the injectors immediately.
Replace as a Set
Replace all injectors as a set whenever possible. On Chevrolet engines, mixing old and new injectors creates uneven fuel delivery — the new injectors compensate for the worn ones, shortening their life. When installing, use new copper sealing washers and torque to the specification in the service manual. After installation, run the engine at idle for 5 minutes to bleed air from the fuel system, then check for leaks at each injector connection before putting the machine under load.
Frequently Asked Questions
Will this fit my Chevrolet C1500?
Yes. This part is designed to fit the Chevrolet C1500, C2500, C3500, K1500 among other models listed in the compatibility table above. Verify your specific model and engine code before ordering to ensure the correct fit.
Can I cross-reference 0432217092 with 14063606?
Yes. Both 0432217092 and 14063606 are interchangeable OEM numbers for this part. They refer to the same component with the same specifications, just different part number revisions.
I have a 6.2L engine – which version do I need?
This part covers 6.2L applications. To narrow down the exact fit, check your vehicle’s model year and engine code. The same displacement can have multiple engine variants with different fuel systems or emissions equipment.
What are the common failure signs on a Chevrolet engine?
On Chevrolet engines, watch for black exhaust smoke under load, rough idle, misfire codes (P0300 series), and loss of power. A single failing injector can reduce engine output by up to 25%. If you notice fuel in the engine oil, the injector seat seal is likely compromised.
